Table, Split and drill-down
View the data behind any widget, or drill into a chart to see the items it represents.
3 min readUpdated
Chart, Numbers, and Battery widgets each have a display mode in their header. The mode changes what the widget shows without changing what it measures.
| Mode | What You Get |
|---|---|
| Visual | Displays only the chart, figure, or battery. This is the default mode. |
| Table | Displays the board's rows behind the widget, filtered to the widget's scope. |

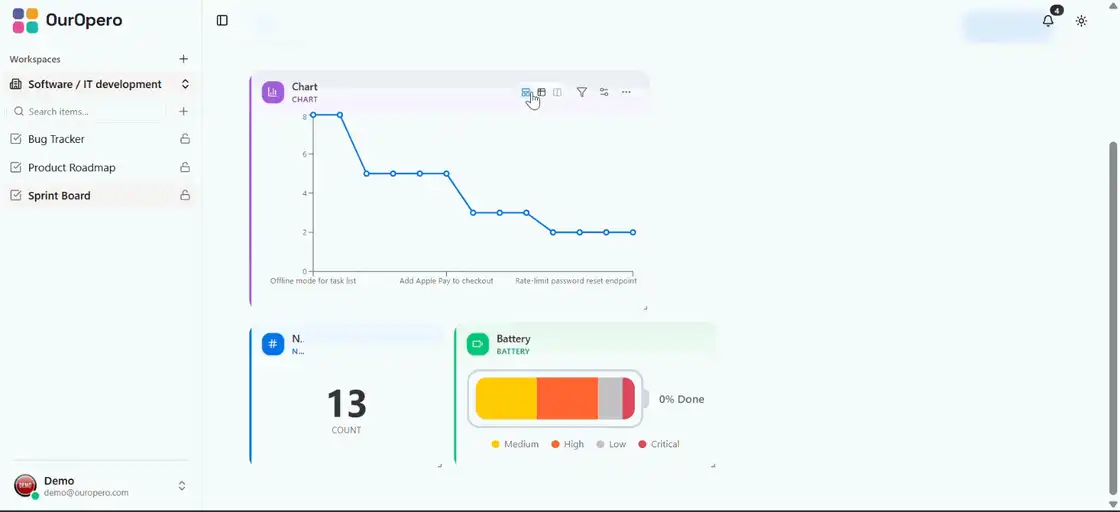

| Split | Displays both the visual and the rows, with the visual above the table. |
Table and Split modes use the actual board table rather than a static copy. The table remains interactive and is narrowed to the data covered by the widget.
Drilling Into a Chart#
- Select a bucket in a chart, such as a bar, slice, or point.
- The widget switches to Split mode and filters the table to that bucket.
- A "Filtered: <label>" chip appears. Select its X to clear the filter.
